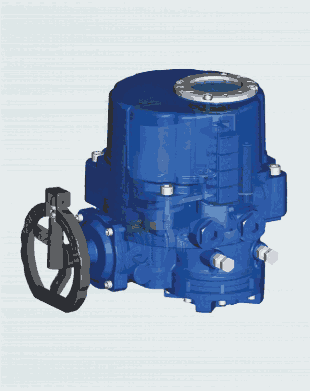

| GQ-010,GQ-016,GQ-024 ELECTRIC ACTUATOR |
 |
價格：3000 元(人民幣) | 產地：海外 |
| 最少起訂量：1臺 | 發貨地：四川 | |
| 上架時間：2020-08-12 20:14:10 | 瀏覽量：365 | |
四川麥斯普洛賽斯自控技術有限公司
 |
||
| 經營模式：代理商 | 公司類型：私營有限責任公司 | |
| 所屬行業：焙燒爐/煅燒爐 | 主要客戶： | |
 在線咨詢  |
||
| 聯系人:杜先生 () | 手機:17778553179 |
電話: |
傳真: |
| 郵箱:2653798521@qq.com | 地址:四川省廣元市利州區東壩辦事處興安路普羅旺斯北區2棟 |
|
GQ-010,GQ-016,GQ-024,GQ-035,GQ-050,GQ-080,GQ-110,GQ-200,GQ-300 ELECTRIC ACTUATOR MAXPROCESS DESCRIPTION GQ series electric actuator is specially. Designed for quarter turn operating. Applications such as Ball, Butterfly, Plug Valves, Dampers and similar usages. FEATURES Compact and not heavy due to high grade Aluminum alloyed housing. ·Hard anodizing for High corrosion resistance on inside & outside. ·Various output torque from 100Nm to 3000Nm. ·Wide range of Voltage. ·Self locking function in the transmission. ·Manual operation Hand-Wheel engaged by Manual / Auto lever arranged for power drive folding Handle. (Space-Saving & Protection from Impact) ·Standard Mounting. (ISO 5211) ·Standard 4 limit switches. (2 for operation, 2 for extra (Dry contacts)) ·Torque switches. (GQ-016~300) ·Space heater with thermostat for preventing overheat. ·Removable drive bushing with under hung for easy machining and tight connection. Enclosure Weatherproof enclosure IP67 (IP68 OPTIONAL) Power supply 110/220V AC 1 Phase 50/60Hz, 380/440V AC 3 Phase 50/60Hz, ±10% Control power supply 110/220V AC 1 Phase 50/60Hz, ±10% Duty cycle (on-off) S2, 100% Max 30Min Duty cycle (modulating) S4, 70% Max 300~1,600 start / hour Motor Induction motor (Reversible motor) Limit switches Open / close, SPDT, 250V AC 16A rating Additional limit switches Open / close, SPDT, 250V AC 16A rating (Except for GQ-010) Torque switches Open / close, SPDT, 250V AC 16A rating (Except for GQ-010) Stall protection/operating temp. Built-on thermal protection, open 150℃±5℃ / close 97℃±15℃ Travel angle 90?± 5?(0 ~100?) Indicator Continuous mechanical indicator with arrow Manual override Declutching mechanism Self locking Provided by double worm gearing Mechanical stopper 2 each external adjustable screws Space heater 10W (110/220V AC) anti-condensation Cable entries Three PF ?″tap Lubrication Grease Moly (EP type) Terminal block Spring loaded lever push type Materials Aluminum alloy, Steel, Al bronze, Polycarbonate Ambient temperature -20℃ ~ +70℃ (expect option electronic board) Ambient humidity 90% RH Max. (non-condensing) Anti vibration X, Y, Z 9g, 0.2~34Hz, 30min.
|
