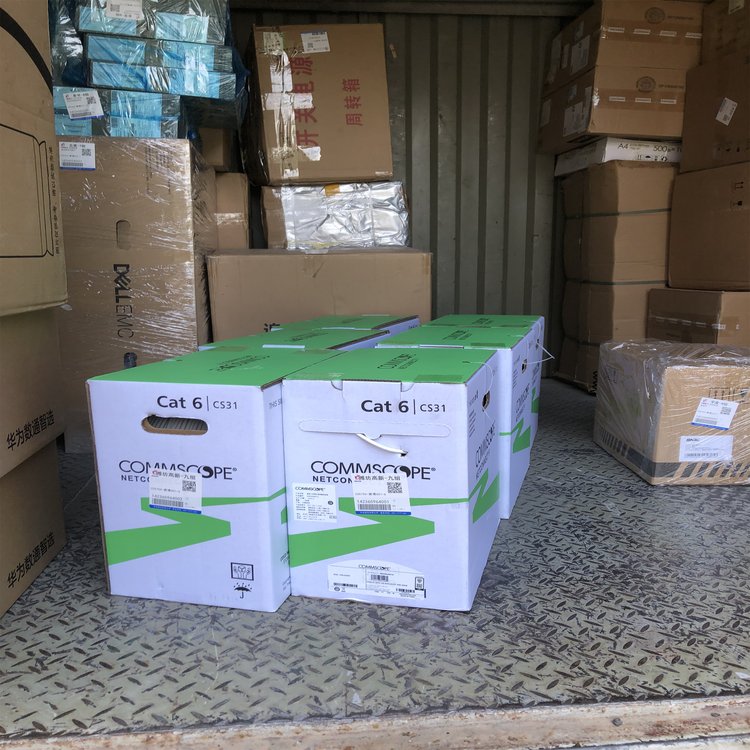

| 產品參數 | | AMP濟南安普代理 884036494/10 CS31Z1 六類非屏蔽網線 品牌 | 安普 | | 屏蔽層 | 非屏蔽雙絞線 | | 線芯材質 | 裸銅線 | | 護套材質 | PVC | | 纖芯絞合方式 | 對絞 | | 傳輸速率 | 10000Kpbs | | 抗拉強度 | 20N | | 芯數 | 8 | | 使用溫度 | 0-60℃ | | 儲存溫度 | -20-60℃ | | 抗壓強度 | 20N | | 外形尺寸 | 10mm | | 重量 | 12kg | | 加工定制 | 否 | | 可售賣地 | 全國 | | 類型 | 六類線/CAT6 | | 型號 | CS31Z1 | | .jpg)
| 6456456456CS31Z1 | | ANSI/TIA Category | 6 | | Cable Component Type | Horizontal | | Cable Type | U/UTP (unshielded) | | Conductor Type, singles | Solid | | Conductors, quantity | 8 | | Jacket Color | White | | Note | All electrical transmission tests include swept frequency measurements | | Pairs, quantity | 4 | | Separator Type | Isolator | | Supported Application | 1000BASE-T | 1000BASE-TX | 100BASE-TX | 10GBASE-T (limited length) | 155Mbps ATM | TP-PMD | Token Ring | VoIP | | Transmission Standards | ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | IEC 61156-5 | ISO/IEC 11801 Class E |
Dimensions | Cable Length | 304.8 m | 1000 ft | | Diameter Over Conductor | 1.029 mm | 0.0405 in | | Diameter Over Jacket, nominal | 5.842 mm | 0.23 in | | Jacket Thickness | 0.559 mm | 0.022 in | | Conductor Gauge, singles | 23 AWG |
Cross Section Drawing | Click on image to enlarge. |
|
Electrical Specifications | Characteristic Impedance | 100 ohm | | dc Resistance Unbalance, maximum | 5 | | dc Resistance, maximum | 8 ohms/100 m | 2.438 ohms/100 ft | | Delay Skew, maximum | 45 ns | | Dielectric Strength, minimum | 1500 Vac | 2500 Vdc | | Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz | | Nominal Velocity of Propagation (NVP) | 68 | | Operating Voltage, maximum | 80 V | | Propagation Delay, maximum | 536 ns/100m @250MHz |
