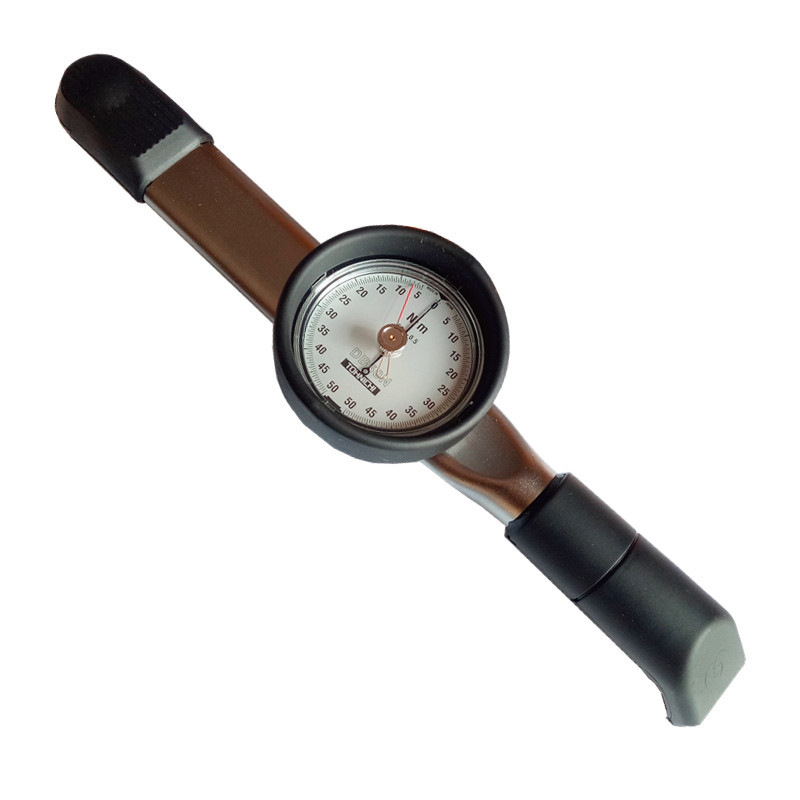

東日直讀式扭力扭矩扳手DB100N-S, 范圍10-100NM，表盤式扳手
東日直讀式扭力扭矩扳手DB100N-S, 范圍10-100NM
東日直讀式扭力扭矩扳手DB100N-S, 范圍10-100NM

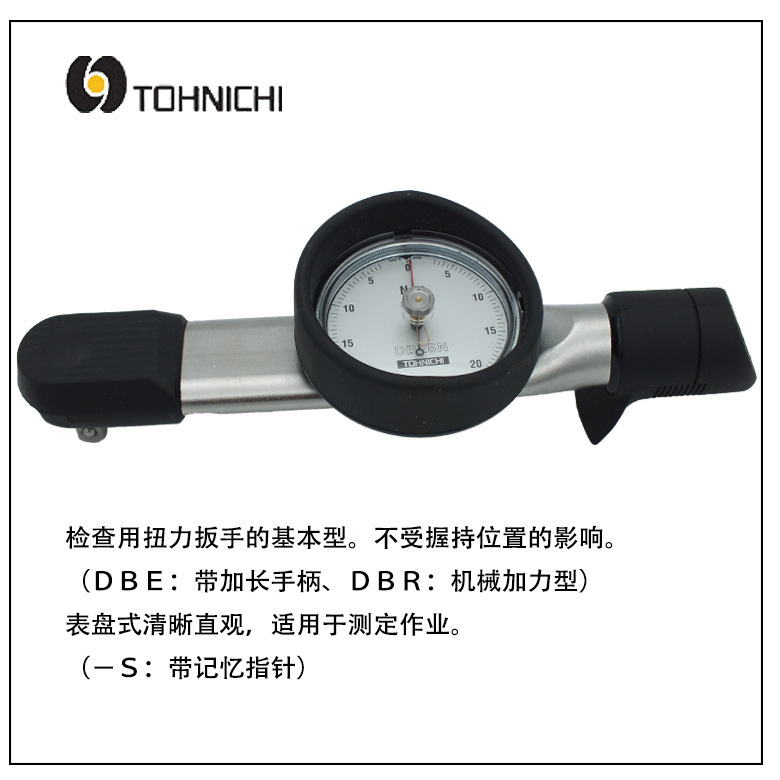

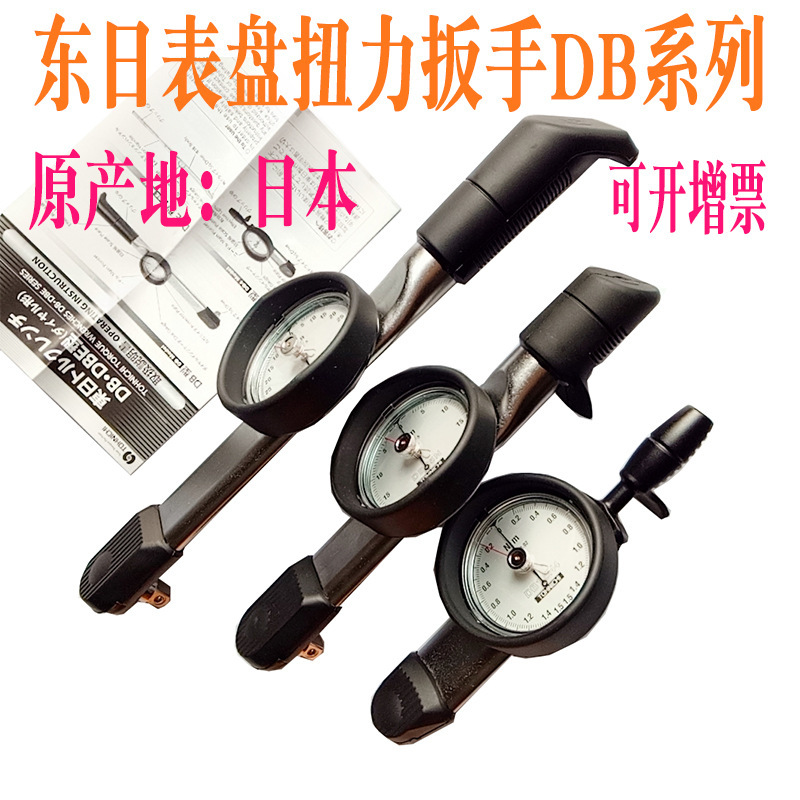

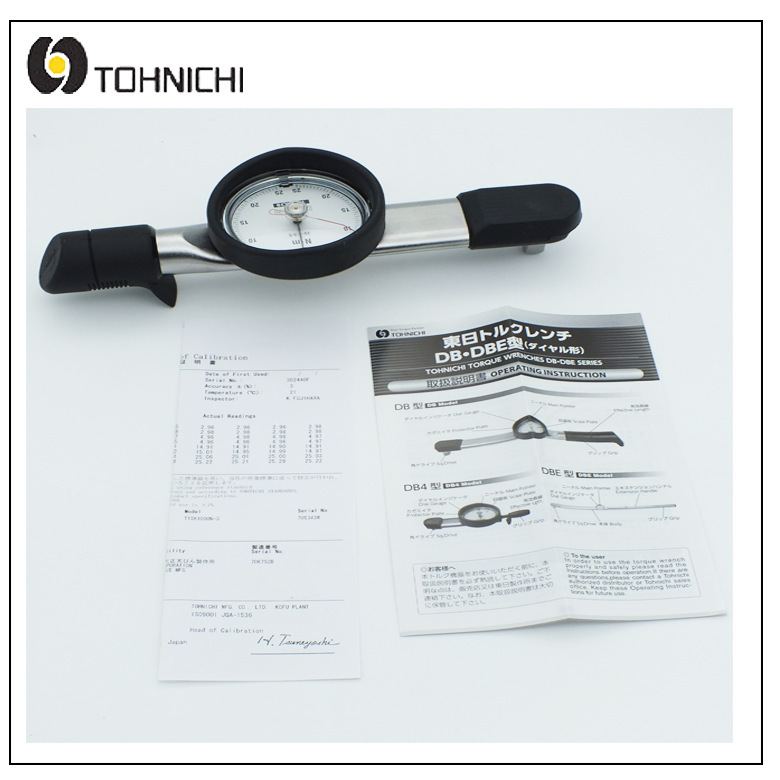

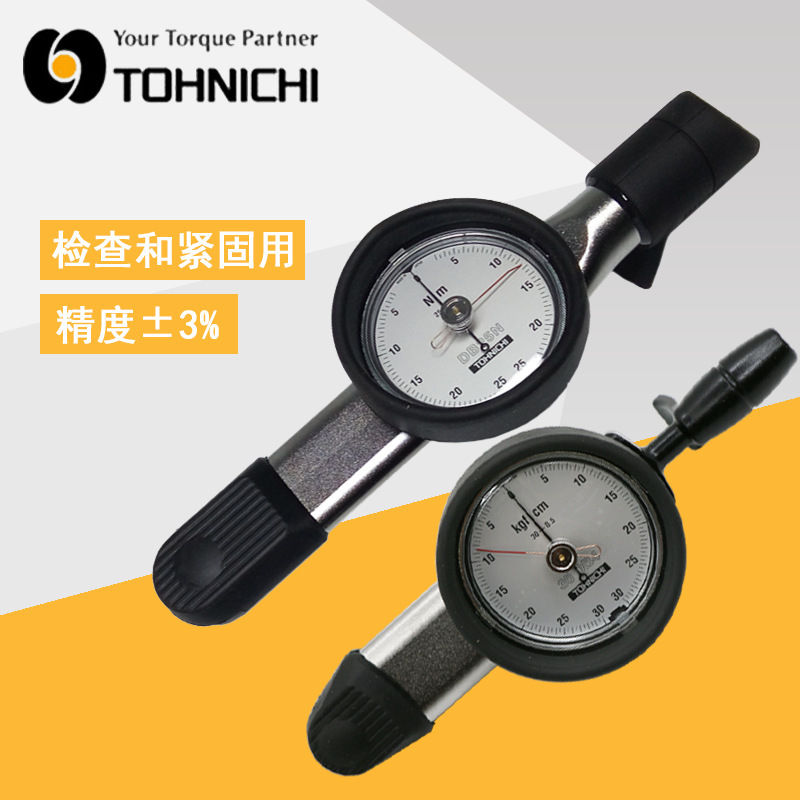

日本東日DB系列表盤式扭力扳手
|
號 |
扭力范圍N.m |
刻度N.m |
全長mm |
方頭尺寸mm |
重量kg |
公制型號 |
扭力范圍Kgf.cm |
|
DB1.5N4-S |
0.2-1.5 |
0.02 |
225 |
6.35 |
0.3 |
15DB4-S |
2-15 |
|
DB3N4-S |
0.3-3 |
0.05 |
30DB4-S |
3-30 |
|||
|
DB6N4-S |
0.6-6 |
0.1 |
230 |
0.4 |
60DB4-S |
6-60 |
|
|
DB12N4-S |
1-12 |
0.2 |
120DB4-S |
10-120 |
|||
|
DB25N-S |
3-25 |
0.5 |
245 |
9.5 |
230DB3-S |
30-230 |
|
|
DB50N-S |
5-50 |
320 |
0.6 |
450DB3-S |
50-450 |
||
|
DB100N-S |
10-100 |
1 |
400 |
12.7 |
0.7 |
900DB3-S |
100-900 |
|
DB200N-S |
20-200 |
2 |
500 |
1 |
1800DB3-S |
200-1800 |
|
|
DB280N-S |
30-280 |
5 |
690 |
19.0 |
1.65 |
2800DB3-S |
3-28 |
|
DB420N-S |
40-420 |
890 |
2.5 |
4200DB2 |
4-42 |
||
|
DBE560N(-S) |
50-560 |
1100 |
4 |
5600DBE2 |
5-56 |
||
|
DBE700N(-S) |
70-700 |
10 |
1260 |
5.5 |
7000DBE2 |
7-70 |
|
|
DBE850N(-S) |
100-850 |
1360 |
25.4 |
6.1 |
8500DBE2 |
10-85 |
|
|
DBE1000N(-S) |
100-1000 |
1490 |
6.4 |
10000DBE2 |
10-100 |
||
|
DBE1400N(-S) |
200-1400 |
20 |
1740 |
8.6 |
14000DBE2 |
20-140 |
|
|
DBE2100N(-S) |
200-2100 |
2140 |
12.8 |
21000DBE2 |
20-210 |
||
|
DBE2800N(-S) |
300-2800 |
50 |
2380 |
38.1 |
16.8 |
28000DBE2 |
30-280 |
|
DBR4500N(-S) |
500-4500 |
1285 |
24.5 |
45000DBR |
50-450 |
||
|
DBR6000N(-S) |
600-6000 |
1585 |
44.5 |
25.5 |
60000DBR |
60-600 |
